Hastelloy X Coil

Hastelloy X coil is made of a high-quality alloy material. It has excellent corrosion resistance, high temperature strength and good processing properties, and is widely used in petroleum, chemical industry, pharmaceuticals, aerospace and other fields.

Classification :

Keywords: Steel Plate

+8618306409158

sales02@yehuimetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product Parameters

Product Name	Hastelloy X Coil
Thickness	2.5mm-10.0 mm
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width	610-2000 mm
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling

Chemical Composition

C	Si	P	S	Cr	Mn	Fe	Co	Ni	Mo	W
0.05 - 0.15	1.0 max	0.04	0.03	20.5 - 23.0	1.0 max	17.0 - 20.0	0.5 - 2.5	Remainder	8.0 - 10.0	0.2 - 1.0

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
95	35	35

Physical Performance

	Units	Temperature in°C
Density	8.22 g/cm³	22°C
Specific Heat	0.116 Kcal/kg.	Room
Melting Range	1260-1355°C	-
Modulus of Elasticity	205 KN/mm²	Room
Electrical Resistivity	118.3 µΩ.cm	22°
Coefficient of Expansion	13.9 µm/m °C	26 - 93°
Thermal Conductivity	9.1 w/m-° K	21°

Scope of Application

Hastelloy X is used in gas turbines, petrochemicals, industrial furnaces, heat treatment equipment, nuclear engineering, jet engine combustion chambers, cabin heaters, turbine exhaust components, etc.

Factory description

Alloy steel has higher strength and toughness than carbon steel, and its reinforcement effect with the increace of tissue imbalance and tend to be more obvious, and the strength of the alloy steel annealing state than carbon steel has a lot of advantages, and in normalizing, than obviously increase the carbon steel and the strength of the alloy steel after quenching and tempering, the steel reinforcement effect is the most significant. Some alloy steels have excellent thermal hardness and other special properties, such as heat resistance, corrosion resistance, wear resistance and magnetic properties.

Partner

Beside the normal executive syandard.we could alse make the tubes according to your own requirements,such as wall thickness tolerance,hardness,surface requirements and etc.by different technical requirements and production technology,try our best to satisfied your.

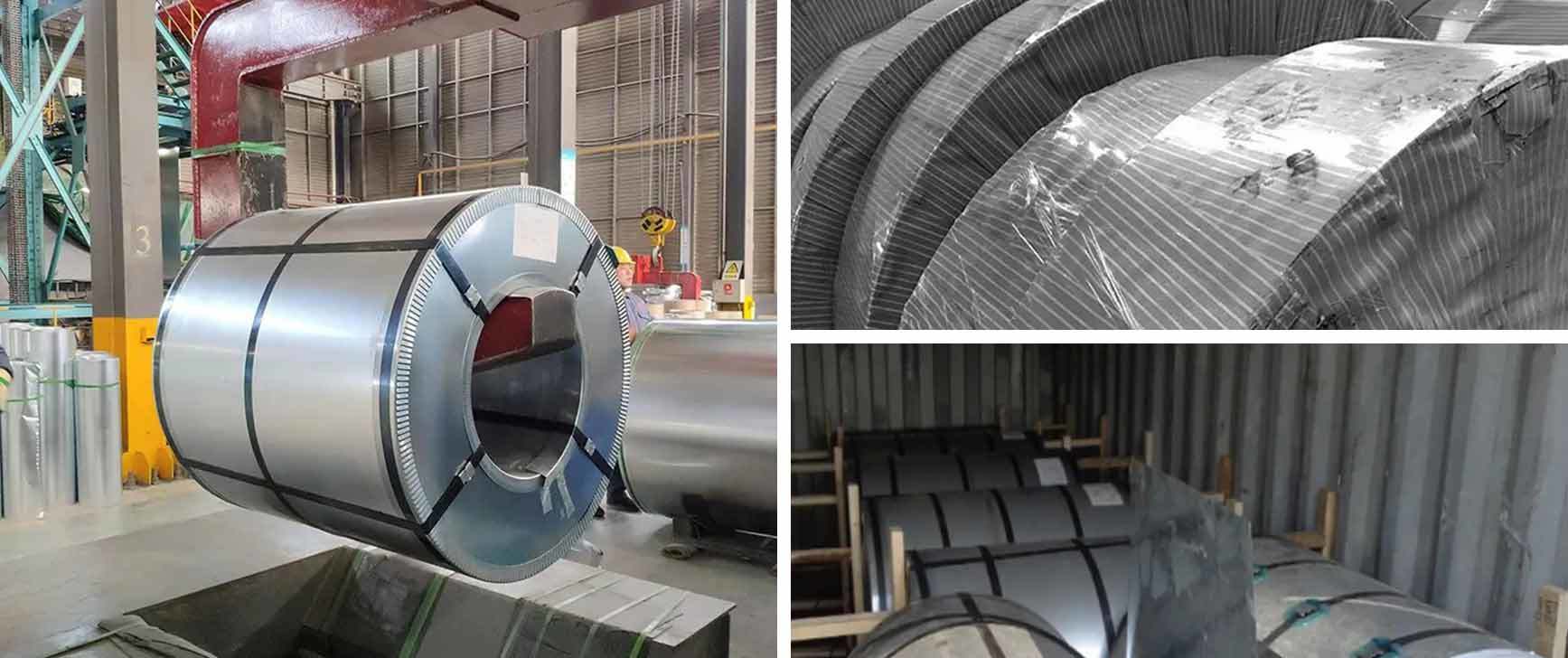

Shipping description

Package Standard export seaworthy package,suit for all kinds of transport, or as required.Water-proof Paper + Edge protection + Wooden PalletsContainer 1*20ft container load Max. 25 Ton, Max. length 5.8m 1*40ft container load Max. 25 Ton, Max. Length 11.8m

Application description

1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys.

2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..

3.Widely used in high temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
