Aluminum Steel Plate

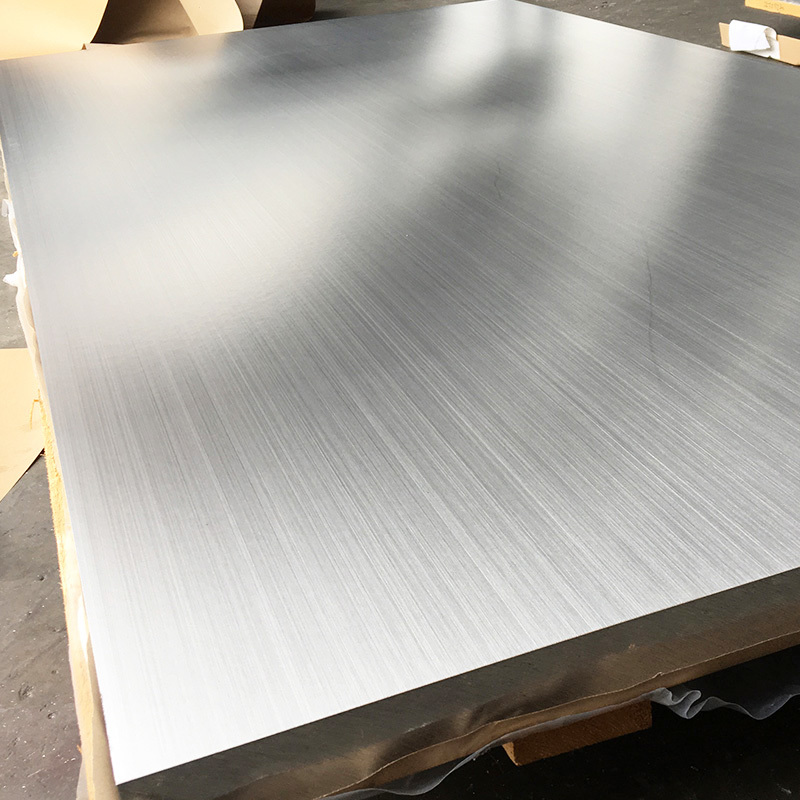

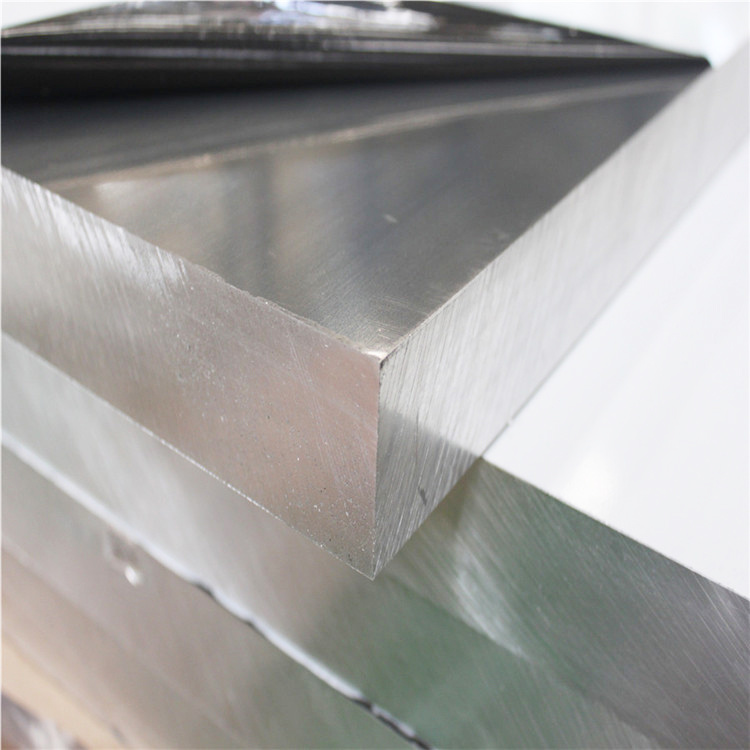

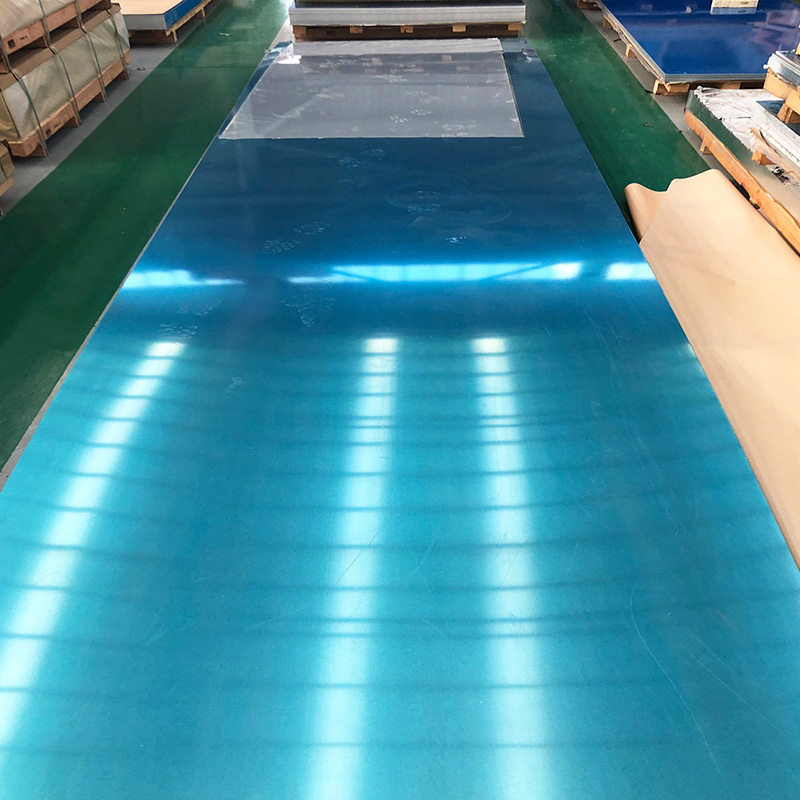

Aluminum plate is a non-ferrous, versatile, durable product crafted by pressing and rolling aluminum into a panel under pressure. It is commonly used in the manufacturing, industrial, construction and transportation industries, for both structural and aesthetic purposes. Purchase it online or at any Metal Supermarkets location, cut to your exact specifications.

Classification :

Keywords: Steel Plate

+8618306409158

sales02@yehuimetal.com

E-mail

RELATED PRODUCTS

ONLINE MESSAGE

PRODUCT DETAILS

Product introduction

Standard size of aluminum sheet/coil	width 1000mm/1250mm/1500mm/2500mm The length can be customized
Standard size of aluminum plate	1000mm2000mm/1250mm2500mm/1500mm3000mm/2000mm6000mm
Conventional standard thickness	0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10mm 12mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 135mm 140mm 145mm 150mm 155mm 160mm 165mm 170mm 175mm 180mm 185mm 190mm 195mm 200mm
Aluminum foil	Thickness 0.0045mm--0.2mm Width 10mm-500mm The length supports customization
Aluminum strip	Thickness 0.2mm-4mm, Width 10mm-1000mm, The length supports customization
Hardness H0 H12 H14 H18 H22 H24 H26 H32 H111 H114 T4 T6 Other hardness can be customized
It can be used for color drawing, embossing, cutting, pattern, strip and other processing
The above are the standard common sizes of coil, and customization is supported

Material table		Product use
1000 series	1050	Food, chemical and extrusion coils, various hoses, fireworks powder
	1060	Chemical equipment is its typical use
	1100	Chemical products, food industry installations and storage containers, weldments, heat exchangers, printed boards, nameplates and reflective appliances
2000 series	2024	Aircraft structures, rivets, missile components, truck hubs, propeller components and other structural components
	2A12	Aircraft skin, spacer frame, wing rib, wing beam, rivet, etc., and structural parts of buildings and transportation vehicles
	2A14	Free forging and die forging with complex shape
3000 series	3003	Kitchen utensils, food and chemical products, storage equipment, storage tanks for transporting liquid products, and various pressure vessels and pipelines
	3004	Chemical product production and storage devices, plate processing parts, building processing parts, building tools and various lamp parts
	3105	Room partition, baffle, movable room board, eaves gutter and downpipe, sheet forming parts, bottle caps, corks, etc
4000 series	4032	Piston, cylinder head
	4043	Building distribution frame
	4343	The products are widely used in automobiles, water tanks, radiators, etc.
5000 series	5052	Aircraft fuel tank, oil pipe, traffic vehicle and ship sheet metal parts, instruments, street lamp supports and rivets, hardware products, etc
	5083	Plate Weldments of ships, automobiles and aircraft; Pressure vessel, refrigeration device, TV Tower, drilling equipment, transportation equipment
	5754	Storage tanks, pressure vessels, ship materials
6000 series	6005	Ladder, TV antenna, etc
	6061	Pipes, rods, profiles and plates for trucks, towers, ships, trams, furniture, mechanical parts, precision machining, etc
	6063	Building profiles, irrigation pipes and extruded materials for vehicles, stands, furniture, fences, etc
7000 series	7075	It is used for manufacturing aircraft structure and other high stress structural parts and molds with high strength and strong corrosion resistance
	7175	High strength structure for forging aircraft.
	7475	Aluminum clad and non aluminum clad plates for fuselage, wing frame, stringer, etc. Other parts with high strength and high fracture toughness
8000 series	8011	The aluminum plate with bottle cap as the main function is also used in radiators, most of which are used in aluminum foil products
For other materials, you can consult customer service
